Using SmartDO 2025 to Power the Freedom of Open Source CAD/CAE with OpenXim and Cutting-Edge Computing Efficiency

SmartDO 2025 introduces OpenXim, an platform for integrating open-source CAD/CAE tools via data streaming and linking, delivering a seamless, high-performance design optimization workflow across diverse engineering platforms.

SmartDO Smart Design Platform to Power the Freedom of Open Source CAD/CAE

SmartDO 2025 empowers the open-source engineering ecosystem with advanced design optimization, combining nonlinear-programming algorithms and cutting-edge computing efficiency.
Integrated with FreeCAD, PrePoMax, and CalculiX which supports linear/nonlinear static, assembly stress analysis, sub-modeling, and nonlinear effects like buckling, contact, and rubber. It also enables modal, dynamic, harmonic, thermal, and thermo-mechanical simulations. The result: faster iterations, deeper insights, and next-generation global optimization, right at your fingertips.

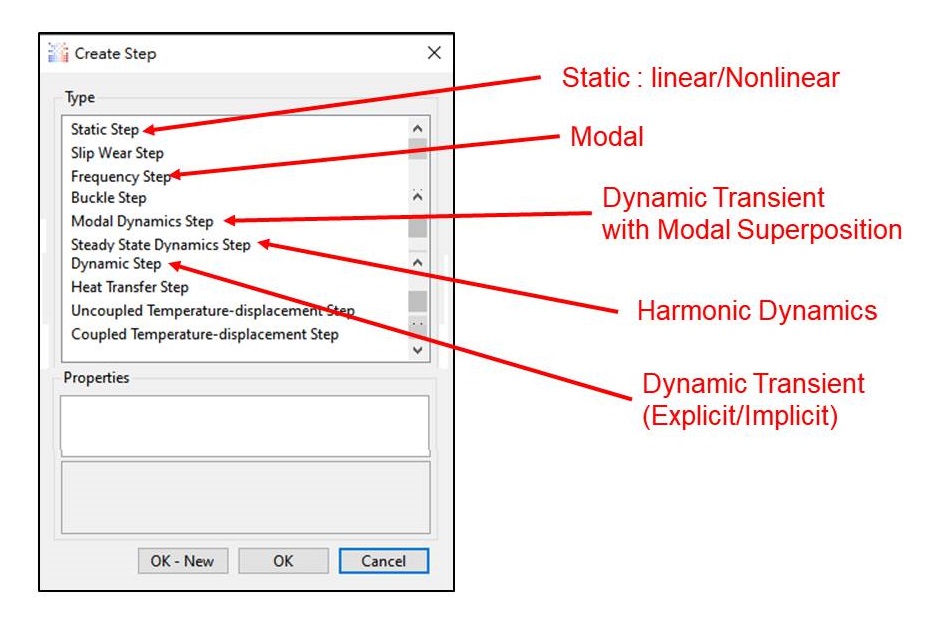

Figure. Some Analysis Type Supported by PrePoMax/Calculix.

Platform for Synchronizing Geometry/Setting between Open-Source/Commercial CAD and Open-Source CAE

Through OpenXim, SmartDO now enables seamless integration between commercial and open-source tools. From FreeCAD, SOLIDWORKS and NX to PrePoMax and CalculiX, all geometry and data stream smoothly in real-time. This push-button SmartLink setup supports synchronized geometry updates, streamlined parameter management, and AI-driven optimization pipelines — all in a single-page configuration.
Figure 1 show the architecture of OpenXim platform.

Figure 1. Architecture of SmartDO/OpenXim Platform.

A Simple Example: Structural Shaping Optimization with SmartDO + FreeCAD + PrePoMax + CalculiX

Here is a simple example showing SmartDO’s synchronizing capabilities : a six-variable shape optimization problem using FreeCAD (geometry), PrePoMax (meshing and boundary setup), and CalculiX (nonlinear FEA).
The objective is to minimize structural volume, with constraint of Von Mises stress < 150 MPa. Figure 2 shows the geometry and design variables of the model.

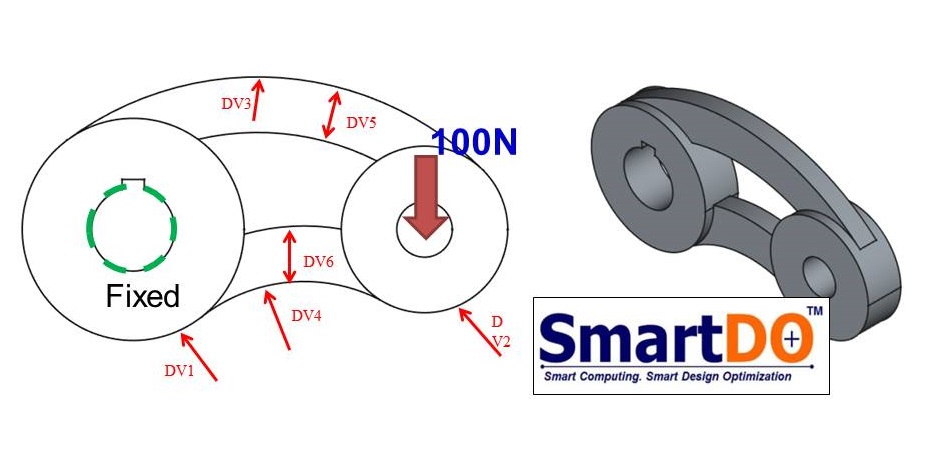

Figure 2. The Geometry And Design Variables Of The Model.

The final optimized design by SmartDO :

• Initial volume: 164,265.2 mm³
• Optimized volume: 74,216.3 mm³
• All design constraints satisfied
• SmartDO took about 130 Calculix analysis to reach the optimum.

Figure 3 shows the shape change during the design history by SmartDO.


Figure 3. The Shape Change During The Design History by SmartDO



With SmartDO’s general-purpose global optimization engine and multidisciplinary, multiphysics capabilities, this process completes with unmatched automation and performance — no scripting required.

Experience SmartDO 2025 Today




Ready to unlock the full potential of open-source simulation? SmartDO 2025 delivers true smart design, combining AI, nonlinear optimization, and real-time software streaming — all on a unified, cross-platform architecture.

For more information about SmartDO, please contact us.
